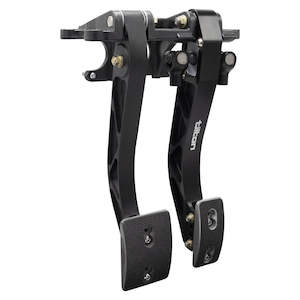

Tilton 800-Series Firewall-Mount Pedal Assembly

DELIVERY 7-14 DAYS

Features:

- Ultra-efficient 7/16"-20 trunnion type balance bar virtually eliminates brake migration through braking zone
- Billet aluminum brake pedal with ball bearings in pivot
- Forged aluminum clutch pedal with oil-impregnated bronze bushing in pivot
- Lightweight and high-strength aluminum frame
- Adjustable pedal ratio (5.0:1 to 6.2:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
- Weighs 5.8 lbs (does not include master cylinders)

Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 76-Series master cylinders
